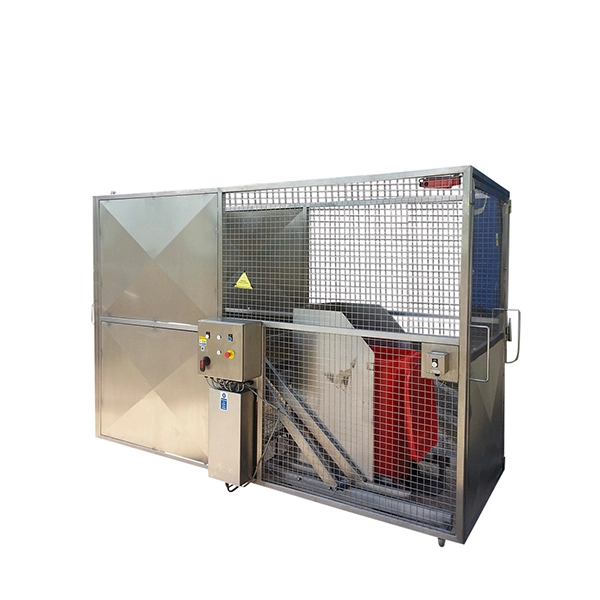

ISCA - Waste bin tipper – Guarded
Machine Number: NA
Description
The Guarded Waste Bin Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Compatible with wheelie waste bins
-The tipping height is adustable
-The machine has a fixed base arrnagemrnt as standard
-304 stainless steel
-Welded construction throughout
-Motor gearbox driven
-Chute fitted as standard
Technical
-Controls/orientation – Hold to run push buttons / Left-hand side
-Stainless steel – AISI 304
-Lifting capacity – 550 lbs (250 kg)
-Max tipping height (adjustable) – 36.2” (920 mm)
-Tipping reach – Customized to your application with a chute if required
-Tipping angle – 120 degrees (30 degrees from horizontal)
-Container suitability – 240 Liter waste wheelie bin (or similar container)
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 21 ft/min
-German SEW motor
-Certification – UKCA
Customization options (please ask on our inquiry form):
-Light curtain guarding
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
