ATLAS - 3 Bread Oven

Name: 3 Bread Oven
Brand: ATLAS
SKU: 1214
Price: POA

Single phase

3 Bread Oven Atlas Craft Bakery Bread Oven 1 Atlas Craft Bakery Bread Oven 1.5 Atlas Craft Bakery Bread Oven 1.2 Atlas Craft Bakery Bread Oven 1.3 Atlas Craft Bakery Bread Oven 1.4 Atlas Craft Bakery Bread Oven 1.6 Atlas Craft Bakery Bread Oven 13 Atlas Craft Bakery Bread Oven 7 Atlas Craft Bakery Bread Oven 8 Atlas Craft Bakery Bread Oven 1.10 Atlas Craft Bakery Bread Oven 1.11 Atlas Craft Bakery Bread Oven 1.12 Atlas Craft Bakery Bread Oven 1.13 ISCAs-Microbakery-Equipment-Solutions

Machine Number: 1214

Request A Quote Shipping Calculator Sell Similar Item

Description

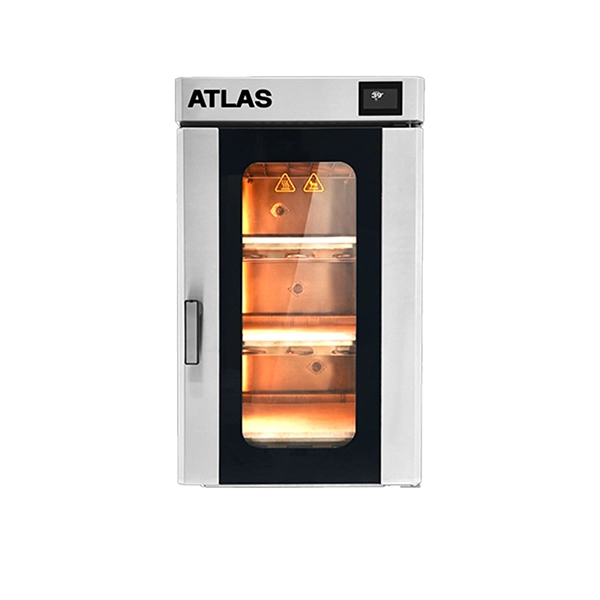

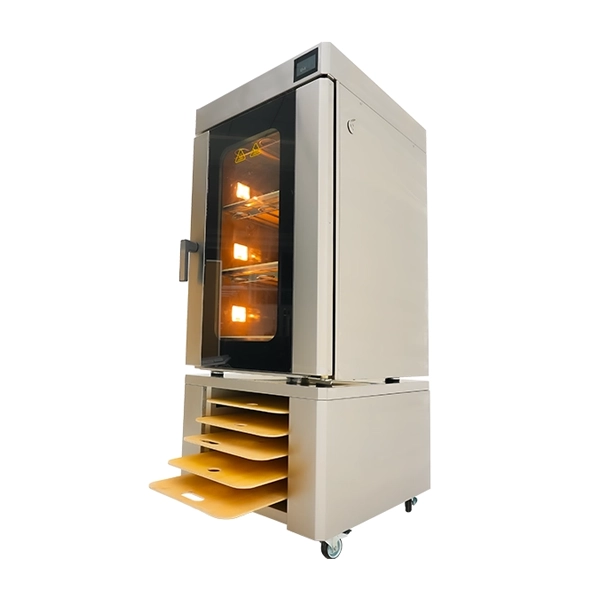

The Atlas 3 Bread Oven is a market-leading single phase sourdough bread oven with independent, fully automatic steam generation system. Ideal for coffee shops, cafes, hotels, restaurants and sourdough bread bakers operating from home.

The Atlas Oven is unique in the single phase sourdough bread oven category as it is the first and only oven, to have an independent steam generation system. This allows the user to control the temperature and duration of the steam introduced into the baking chamber, allowing the user ultimate control over the bake process; similar to a large professional, commercial deck oven.

Furthermore, the oven allows you to control the temperature of each level/zone independently, allowing for even heat distribution within the oven, and the most professional , precision bake possible in any micro baker oven on the market today.

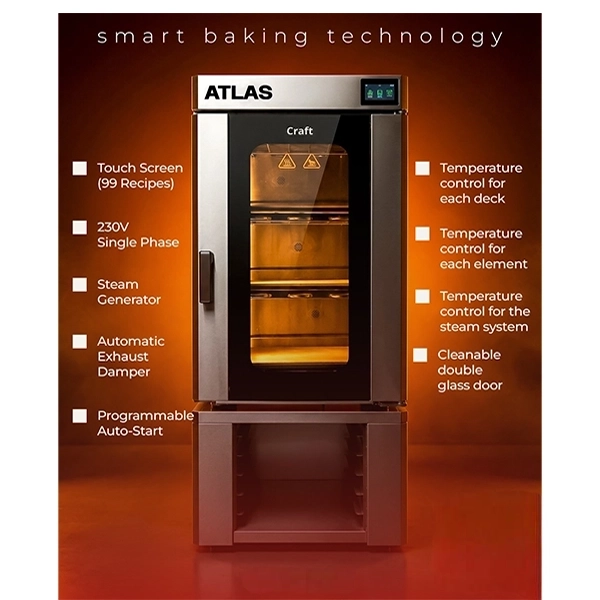

Features:
– 4.3″ touchscreen panel with recipe storage
– Advanced steam control: Temperature and duration of steam can be controlled
– Advanced temperature control for each deck. There are 4 temperature control points, allowing you to adjust the temperature independently in the different oven zones.
– Solid, robust locking door handle
– Loaf capacity: 12 units
– CE Stamped
– Heat up time: approx. 95mins

Please see the comparison table in the link below to see how other similar style ovens compare to the Atlas 3 bread oven:

Atlas Oven Comparison Table

Technical

– Model #3
– Touchscreen control panel
– Baking surface dimensions: 23.62 x 17.12″ / 600 x 435 mm
– Total deck area: 8.39 ft2
– Weight: 396lb / 180 Kg
– Dimensions LxWxH: 37.4 x 27.75 x 46.65″ / 950 x 705 x 1185 mm (door closed)
– Dimensions LxWxH: 60.63 x 27.75 x 46.65″ / 1540 x 705 x 1185 mm (door open)

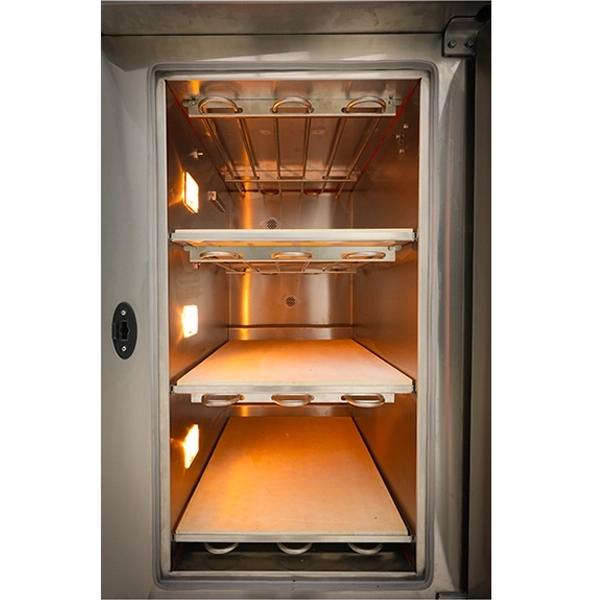

– Number of decks: 3

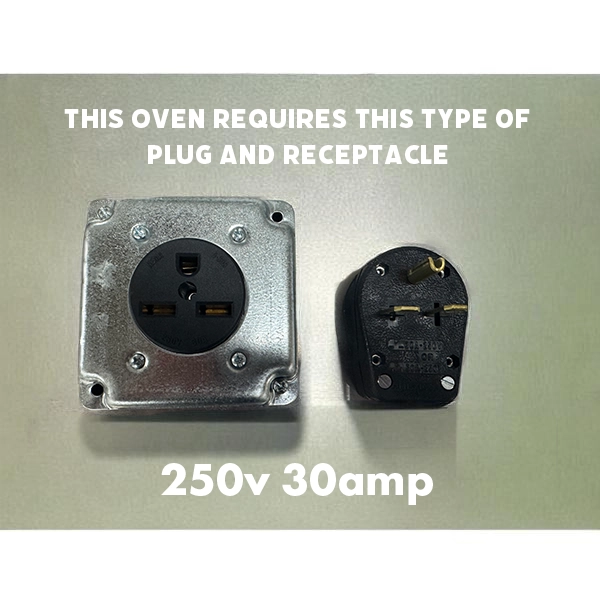

– Electrical: 240v-1P – 4.7Kw – 20.2 amps
– Avg energy consumption: 3.2Kw
– Max temperature: 536° F/ 260° C
– 40 x 18″ / 1016 x 457 mm viewing window
– Power cord length = 9.8ft

– Cold water line required
– Water hose length = 6ft (comes with unit)
– Water hose = 3/4” garden hose thread each end

Baking Videos

FAQS

-Steam generation system – how is it unique / the most advanced to date in this category of oven?
The user is able to control the temperature, and volume of steam delivered.

-Do i need a water line plumbed into the oven?
Yes, this oven has a fully automatic steam system and will call for water from your mains line.

-Steam generation system – how does it work exactly?
On the controller, the user can set the steam generator’s temperature. The factory setting is 356oF /180oC. This setting has been decided as the optimum setting, providing outstanding results from observations in the field with multiple bakers.
The customer can set this temperature lower or higher. If you set the temperature to a lower degree, the quantity of the steam will reduce because the generator will cool down faster, and when set too high, the water will evaporate much quicker and, resulting in a lower quantity of steam. The customer can learn/experience the most suitable setting for their product/process by trial and error.
The measurement the user sees on the screen is in seconds. The total amount the valve remains open and pours the water into the generator.

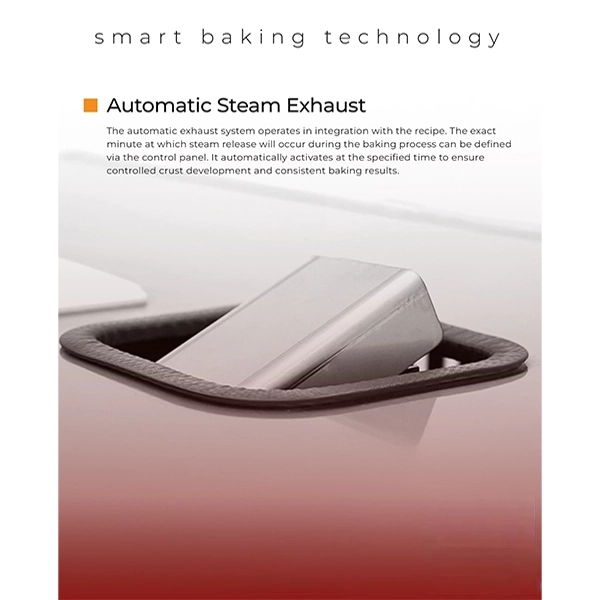

-What does a fully automatic steam system mean?
The introduction of water; steam generation; and steam evacuation form the oven is fully automatic (with no manual intervention whatsoever) – all controlled by the touchscreen panel.

-Is this oven single phase?
Yes, this oven requires a 240v-Single phase electrical supply.

-How is this oven different / the most advanced to date in this category of single phase microbaker ovens?
This is the only oven with a fully automatic touchscreen control panel.
This is the only oven with a fully automatic steam generation system.
This oven is built by the world renowned Kreazot Group, established many years ago to manufacture industrial bakery equipment. The oven is therefore not only the most aesthetically pleasing oven on the market to date, but it is built to an extremely high quality level, by bakery engineer experts.
Link: https://kreazot.com.tr/home
